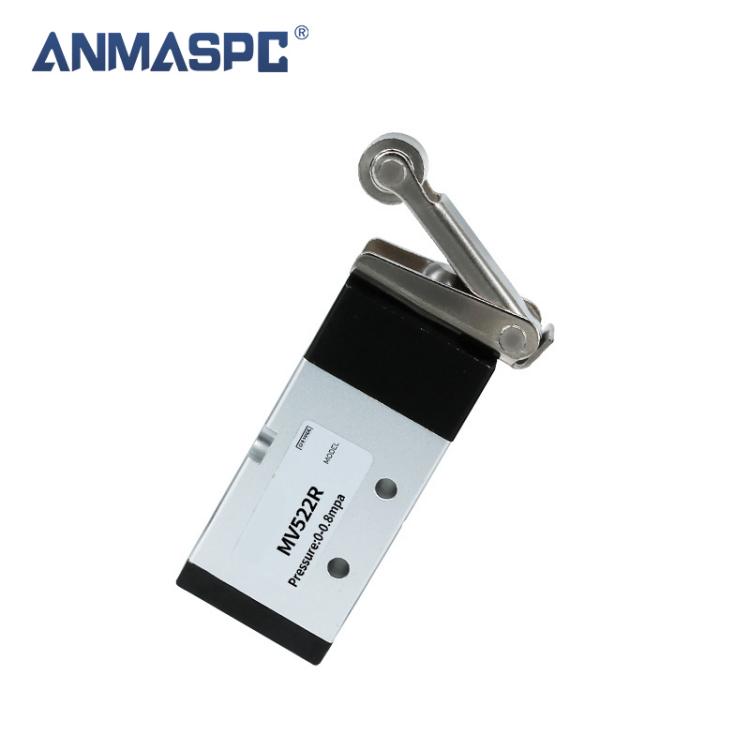

Pneumatic solenoid valve MV522R mechanical valve

MV522R mechanical valve is a pneumatic control element, mainly used for directional control. Its model is MV522R, where "MV" means mechanical valve, "52" means two-position five-way, "2" means the pipe diameter is G1/4, and "R" means the head of the mechanical valve is a roller head. Technical parameters Medium: Air (needs to be filtered through a 40um filter) Action mode: Direct acting Pipe diameter: G1/4 Working pressure: 0.1~0.8MPa (0.1~114psi) Working temperature: -5~60°C (28~140°F) Lubrication: No lubrication required Application scenarios MV522R mechanical valve is suitable for various industrial applications that require directional control, with excellent quality, reliable performance, and good versatility. Its working principle is to achieve switch action through pneumatic control, which is suitable for automation equipment that requires precise control.

Model:MV522R
