Pneumatic cylinder CA2B series standard cylinder for pneumatic actuators

Applications and Advantages The CQ2B series thin cylinder is widely used in various automation equipment that require compact design due to its space-saving design and compact device structure. Its features include: ‌Space saving‌: The compact design is suitable for installation environments with limited space. ‌Multiple specifications‌: A variety of cylinder diameters and strokes are available to meet different application requirements. ‌Magnetic switch installation‌: Some models support the installation of small magnetic switches on four sides for convenient signal feedback and control‌. Maintenance and care recommendations In order to ensure the long-term stable operation of the CQ2B series cylinder, it is recommended to regularly check the working status of the cylinder, including: ‌Lubrication condition‌: Ensure that the cylinder is properly lubricated during operation. ‌Cleanliness‌: Keep the inside and outside of the cylinder clean to prevent dust and impurities from entering and affecting performance. ‌Pressure check‌: Regularly check the working pressure of the cylinder to ensure that it operates within the specified range.

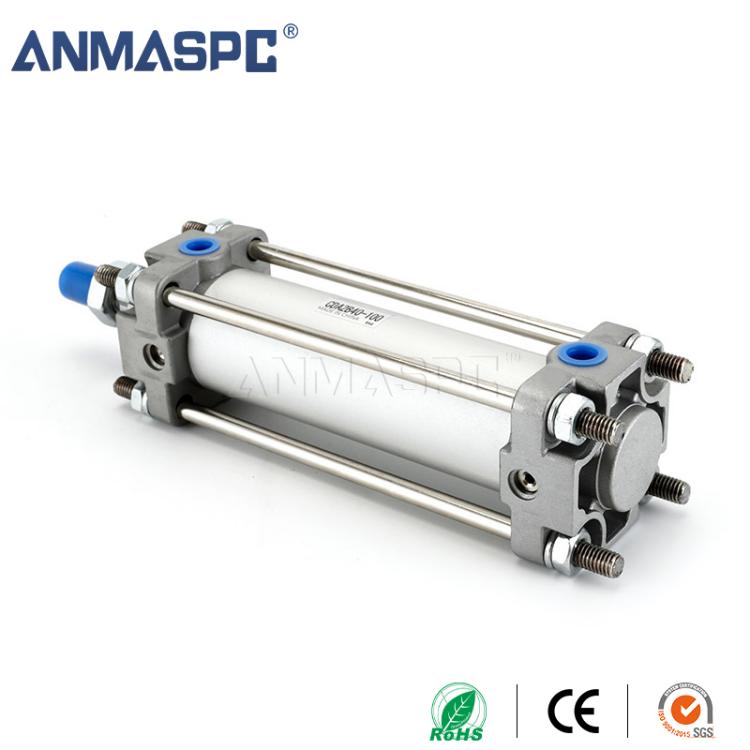

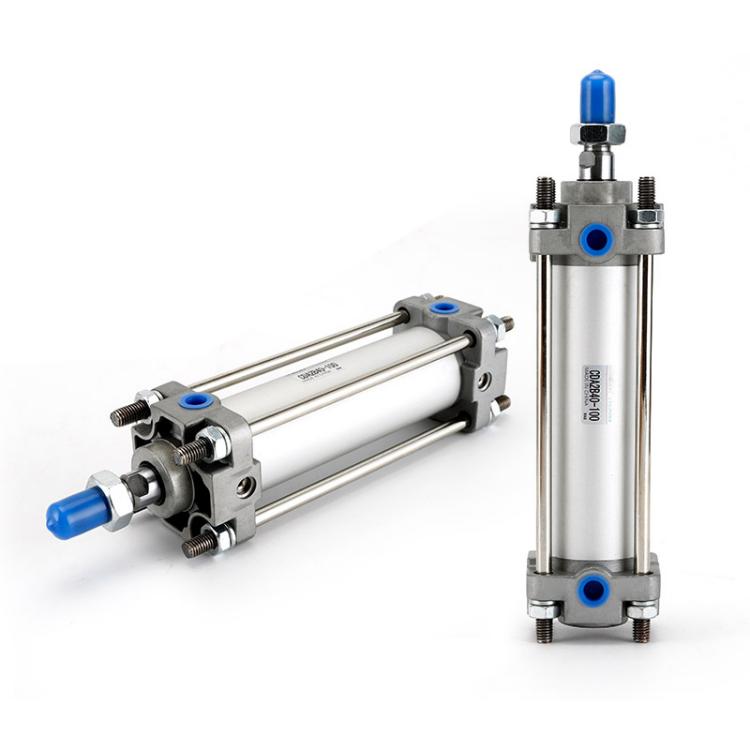

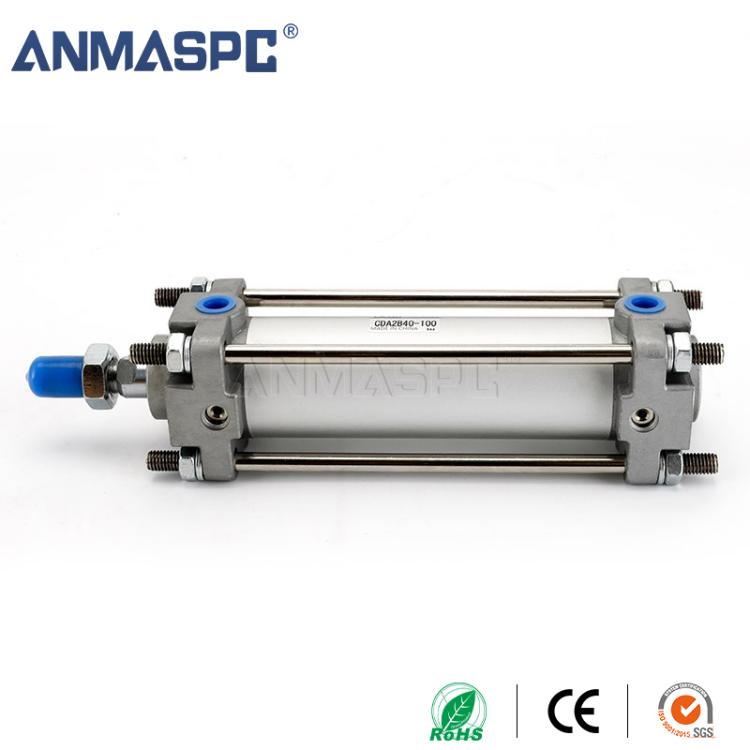

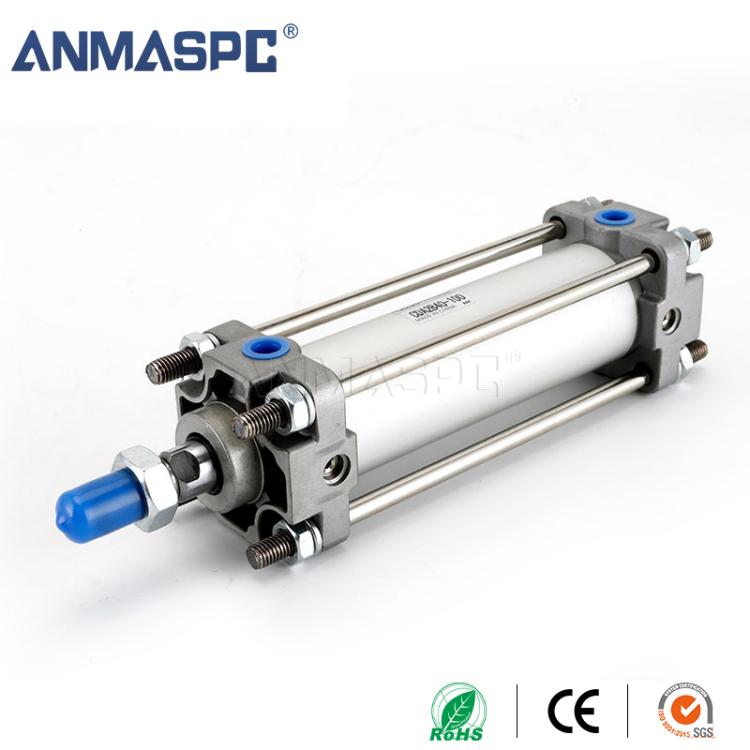

Model:CQ2B40-100

Send Inquiry

Product Description

Cylinder diameter range: The diameter range of CQ2B series cylinders is 12mm to 100mm, and specific models include CQ2B20-10S, CQ2B100-40DMZ, etc.

‌Action mode‌: CQ2B series cylinders can be single-acting or double-acting. Single-acting cylinders use springs to press back, while double-acting cylinders require double piston rods.

‌Installation method‌: The standard installation method is through-hole type (type B), in addition to multiple installation methods such as internal threads at both ends (type A), foot type (type L), piston rod end flange type (type F) and end cover side flange type (type G).

‌Use environment and fluid temperature‌: CQ2B series cylinders are suitable for ambient temperatures of -10 to 70 degrees, the fluid used is air, the pressure resistance test pressure is 1.5MPa, and the maximum use pressure is 1.0MPa.

‌Magnetic switch‌: Some models support magnetic switch installation, and the number of magnetic switches can be 2 or 1, depending on the model.
