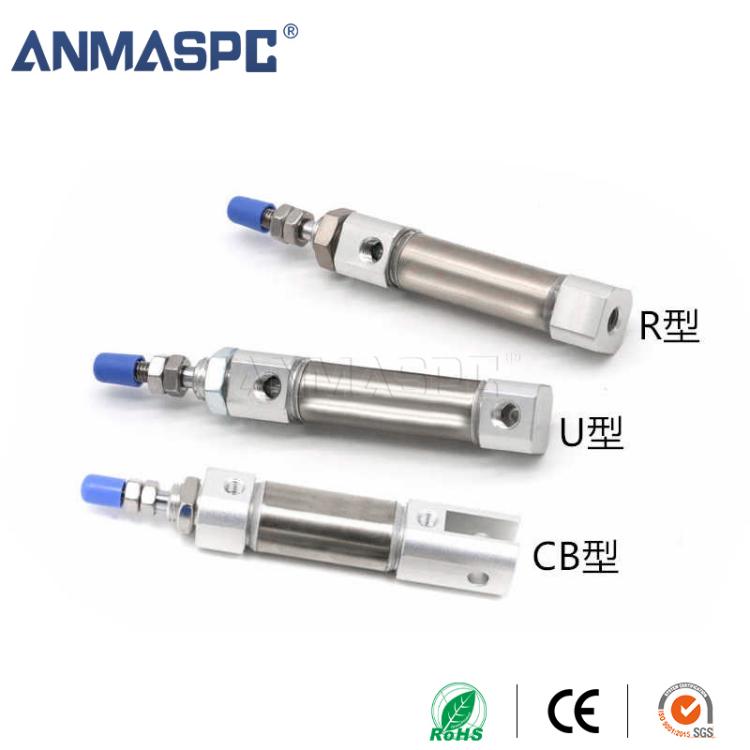

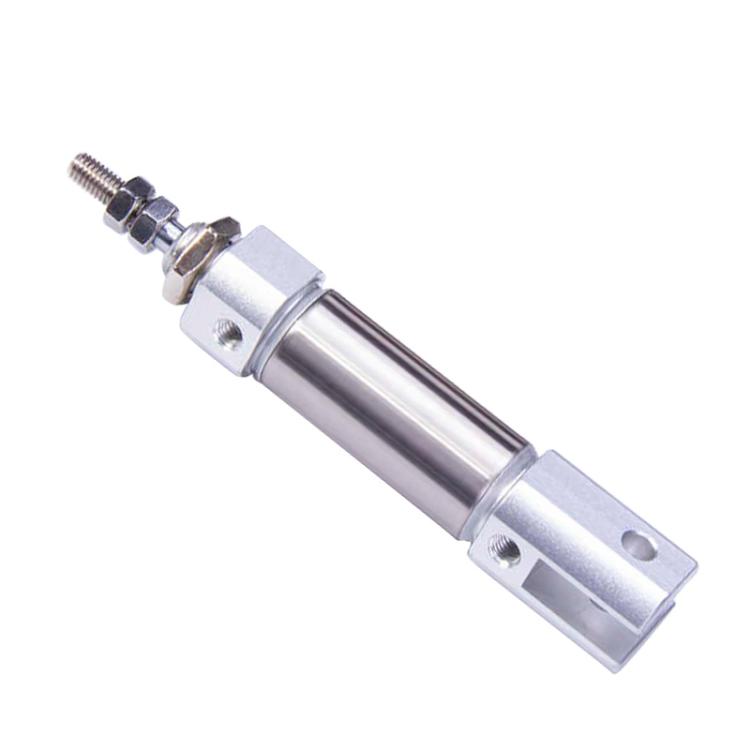

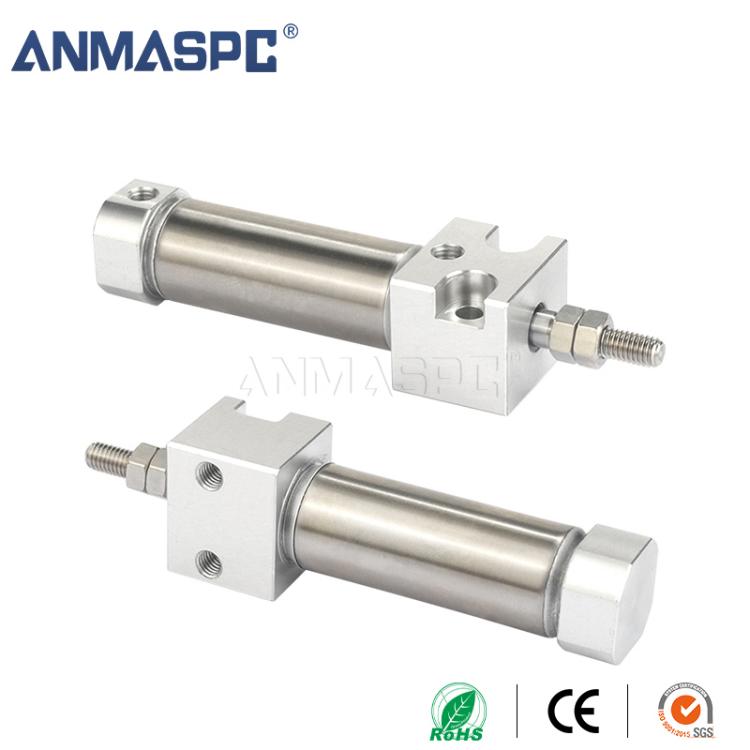

Pen-shaped cylinder PB series pneumatic cylinder for pneumatic actuators components

‌Pen-shaped cylinder‌, also known as mini cylinder or micro cylinder, is a cylinder with compact structure and small footprint. It is named after its slender appearance, similar to a pen. Pen-shaped cylinders are particularly suitable for occasions with strict requirements on installation space, such as small automation equipment and precision instruments, and can achieve precise linear motion control in a limited space.

Model:PB

Send Inquiry

Product Description

Features

‌Compact structure‌: The design of the pen-shaped cylinder makes it very small in space and suitable for use in a small environment.

‌Cheap price‌: Compared with other types of cylinders, the price of pen-shaped cylinders is more affordable.

‌Various materials‌: Usually made of stainless steel and aluminum alloy, it has good durability and stability.

‌Easy installation‌: The front and rear threads are fixed and the installation process is simple and quick.

‌Wide application‌: Suitable for high-frequency use requirements, widely used in electronics, medical, packaging machinery and other fields.

Precautions for use

‌Magnetic switch installation‌: A magnetic switch mounting bracket is required, and the installation methods are divided into steel belt installation and track installation.

‌Floating joint connection‌: Connect the cylinder piston rod and moving parts through a floating joint to ensure smooth and stable movement and prevent jamming.

‌Stroke selection‌: It is best to leave a margin when selecting the cylinder stroke to cope with different usage requirements‌.
