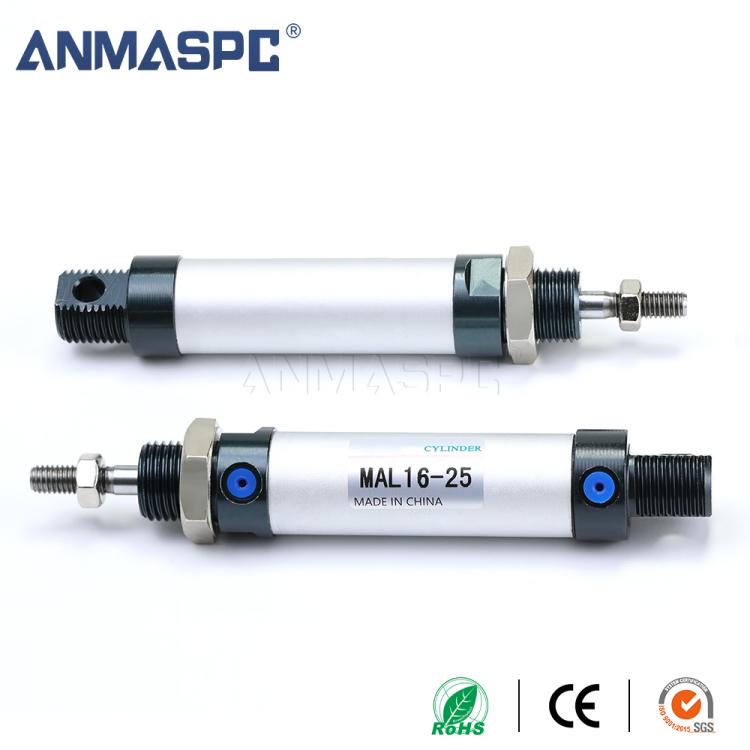

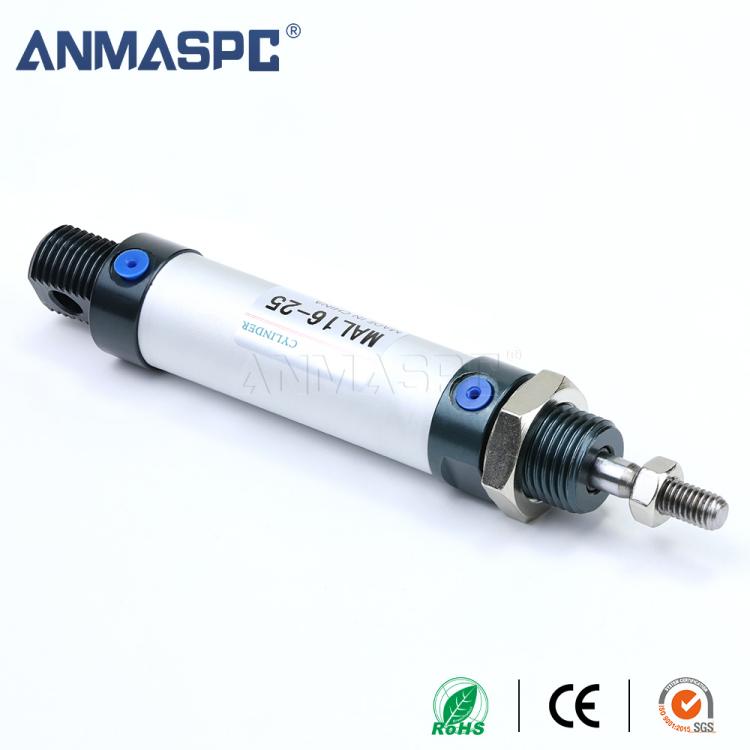

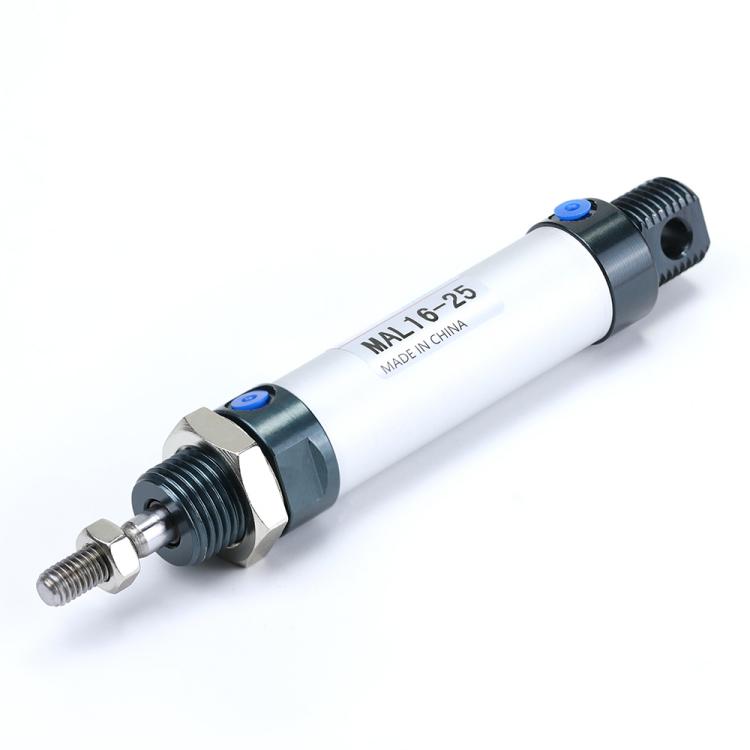

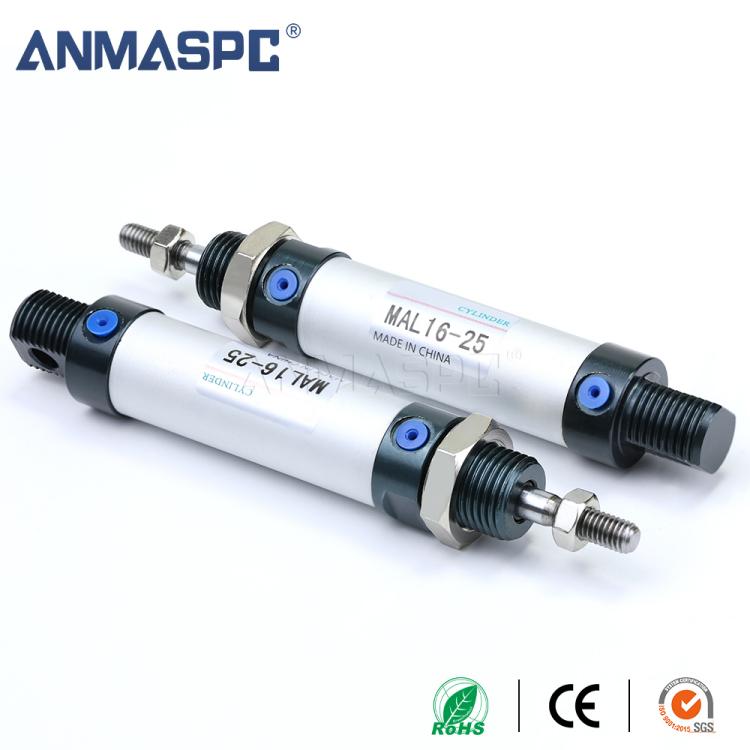

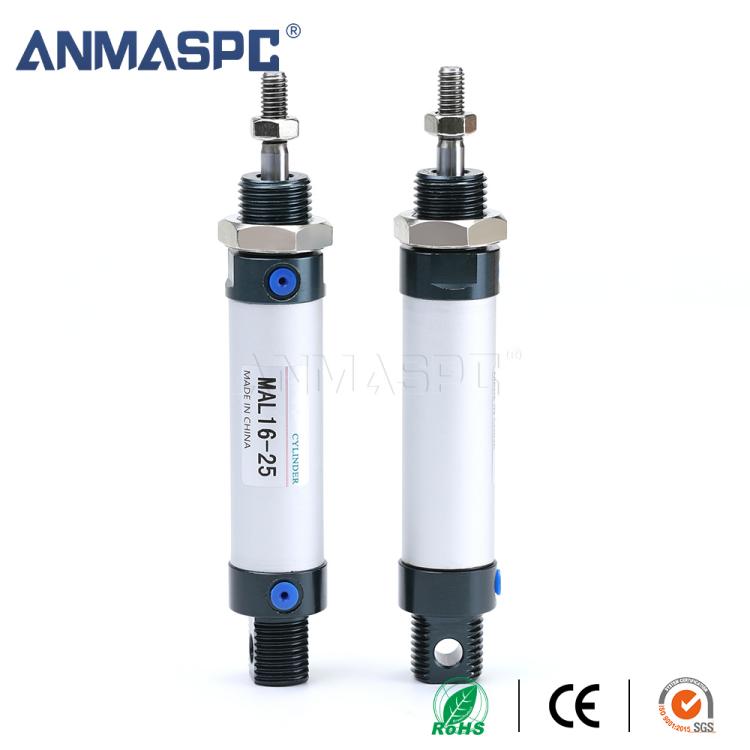

MAL series cylinder Pneumatic cylinder Mini Aluminum barrel cylinder

MAL mini cylinder is a small pneumatic actuator with a variety of features and application scenarios. Here are the details about MAL mini cylinder:

Basic parameters and specifications

MAL mini cylinder models include MAL25X250, MAL25X300 and MAL25X350. The main difference between these models is the stroke length, for example, the cylinder stroke of MAL25X250 is 250mm. The cylinder has a diameter of 25mm and is suitable for occasions that require precise control and a small installation space.

Structure and material

MAL mini cylinder adopts an aluminum round tube cylinder body, and the front and rear covers are threaded with the cylinder tube. The front cover adopts a lubricated bearing guide with good lubrication and guiding performance. The piston seal adopts a special-shaped two-way sealing structure with compact size and oil storage function. The cylinder body and front and rear covers are hard-anodized by anodizing, which is corrosion-resistant and has a beautiful appearance.

Application scenarios

MAL mini cylinder is suitable for occasions with strict requirements on installation space, such as small automation equipment, precision instruments and other fields. Its compact structure and small footprint enable precise linear motion control in a limited space. In addition, the MAL mini cylinder is also suitable for applications that require high frequency use, which can effectively save installation space.
