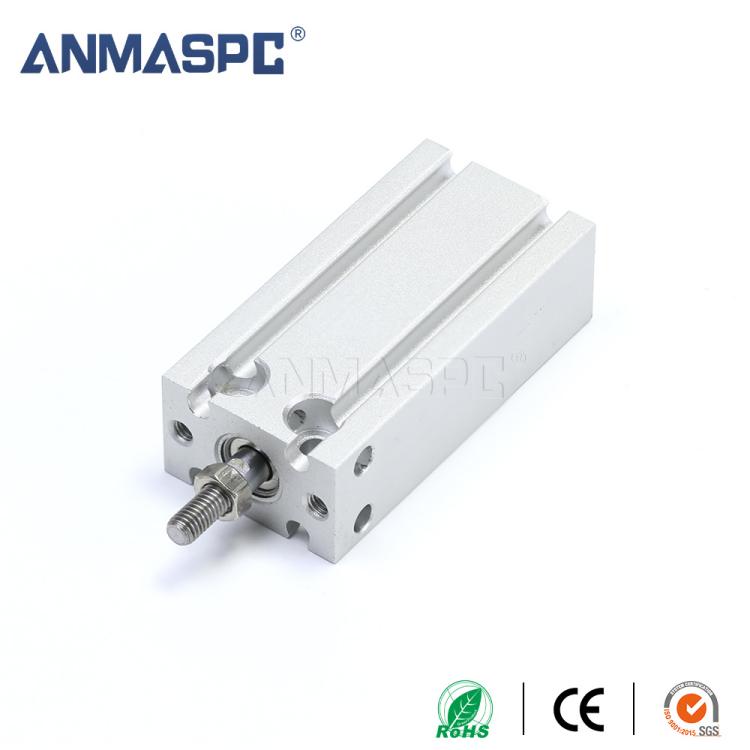

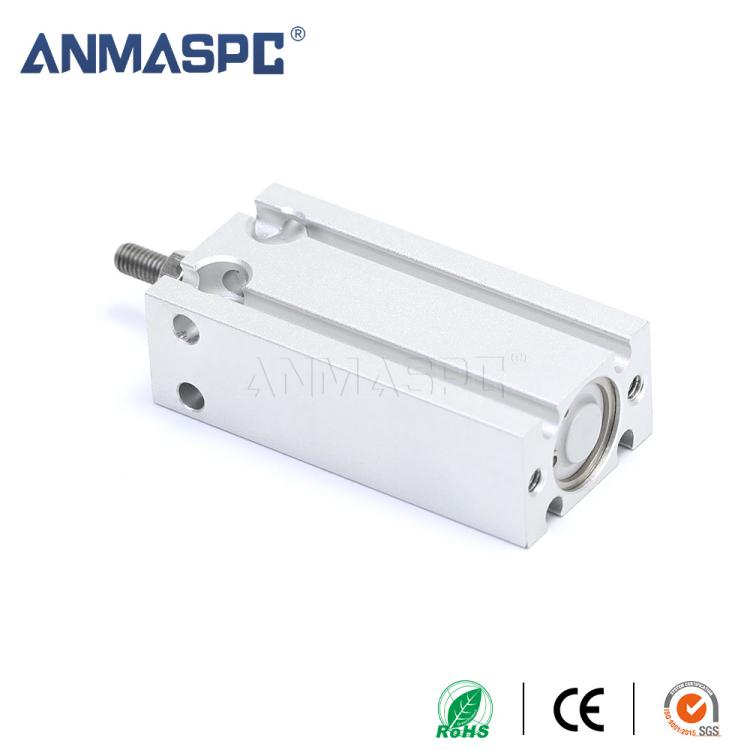

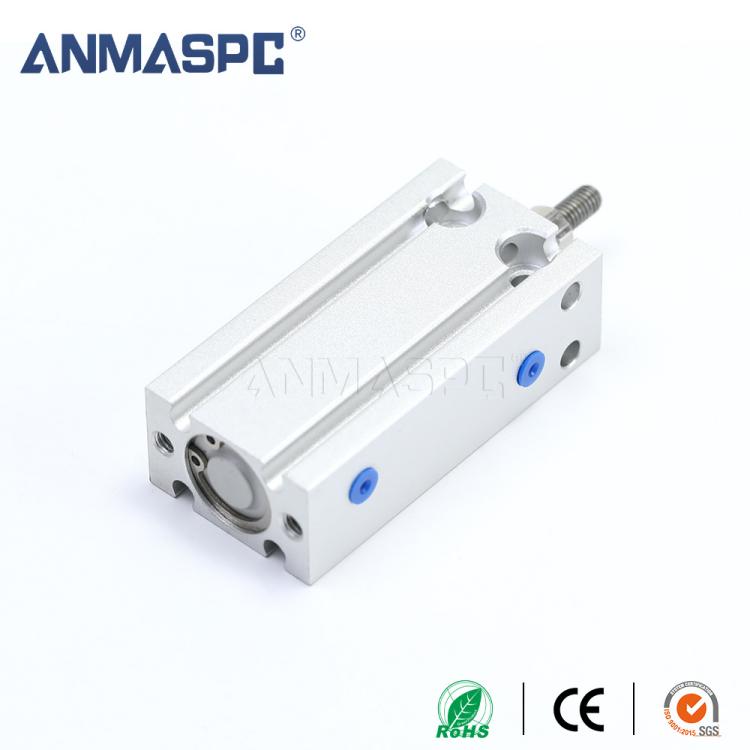

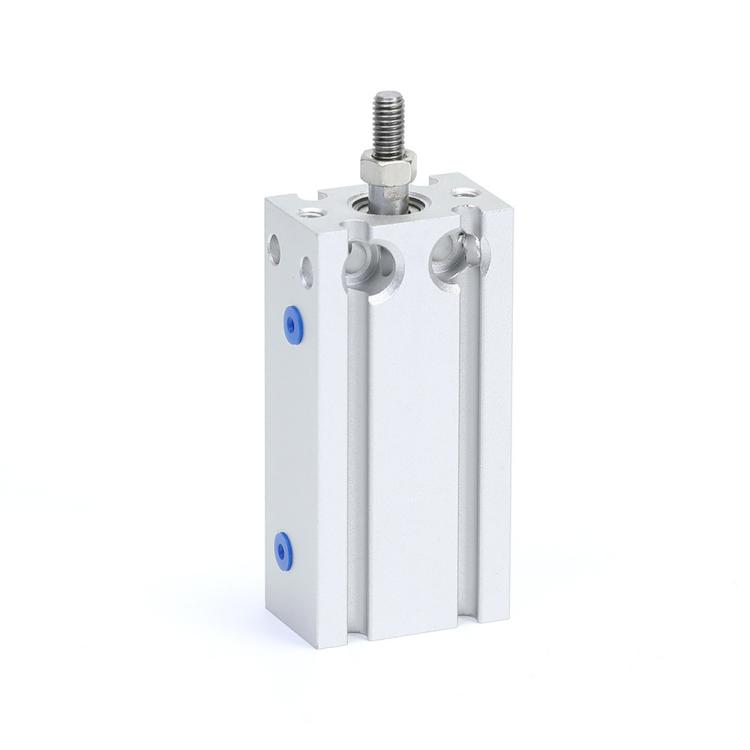

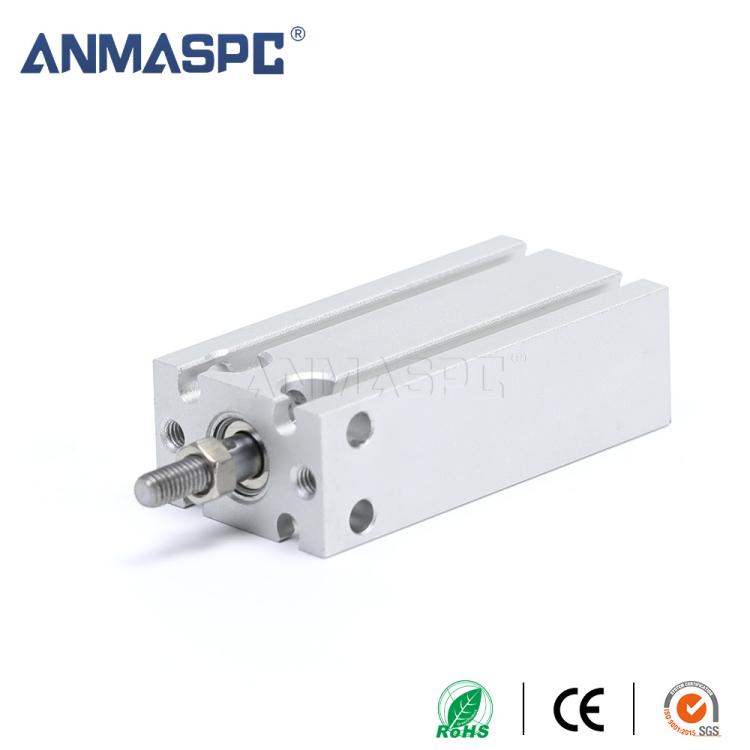

CU series cylinder Pneumatic cylinder Free mount cylinder

The ‌Free Mount Cylinder‌ is a special pneumatic actuator that is widely used in industrial automation systems. Its biggest feature is its high flexibility and freedom, which can adapt to various complex mechanical equipment requirements. The free mount cylinder can be installed from multiple directions, which makes it perform well in situations where the equipment layout needs to be adjusted frequently. Structural Features The free mount cylinder usually consists of a cylinder barrel and a piston, which moves back and forth in the cylinder barrel to achieve linear pushing or pulling force. It has a simple structure, small size, and light weight, and is suitable for a variety of different application scenarios. In addition, the free mount cylinder can be fixed from four directions of the body, which is easy to install and use, and can save installation space.

Model:CDU20-10

Send Inquiry

Product Description

CU free-mount cylinder‌ is a cylinder with flexible design and easy installation, suitable for a variety of industrial application scenarios. The following is detailed information about CU free-mount cylinder:

Basic parameters and characteristics

‌Cylinder diameter‌: The cylinder diameter of CU free-mount cylinder ranges from 6mm to 32mm, including 6mm, 10mm, 16mm, 20mm, 25mm and 32mm. ‌Stroke‌: The standard stroke includes 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm and 50mm. ‌Action mode‌: CU free-mount cylinder has two action modes: double-acting and single-acting (spring return). ‌Pressure resistance‌: The maximum operating pressure is 0.7MPa (7 bar). ‌Operating temperature range‌: The ambient temperature is between 5℃ and 60℃, and some models can work normally under high temperature conditions of 150℃ (need to be customized)‌. Installation and use features

‌Self-lubricating bearings‌: CU free-mount cylinders use self-lubricating bearings, no lubrication required‌.

‌Multi-face installation‌: The cylinder can be installed in any direction, saving installation space and high fixing accuracy‌.

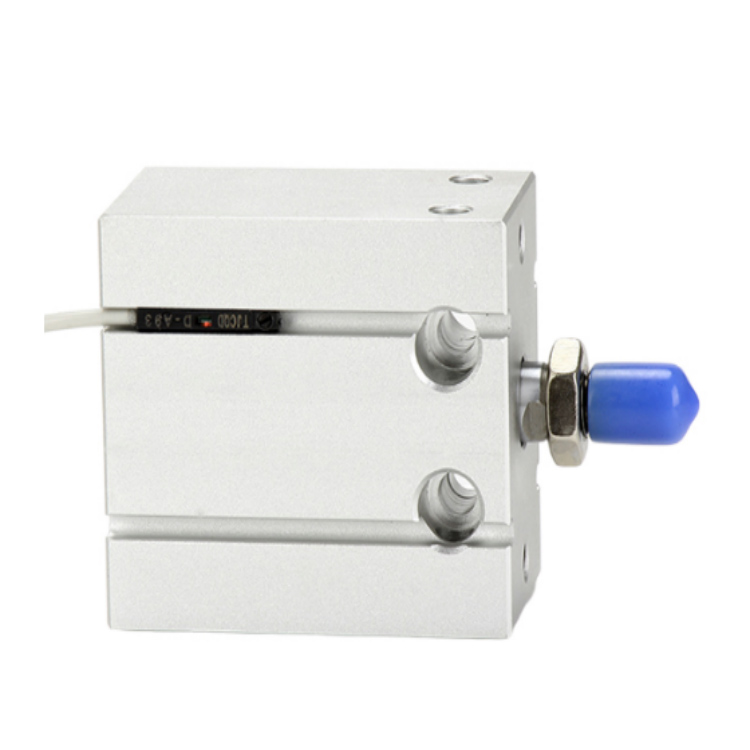

‌Magnetic switch‌: The cylinder piston is equipped with a permanent magnet, which can trigger the magnetic switch installed on the cylinder to sense the movement position of the cylinder‌.

‌High temperature applicability‌: Some models can use high temperature resistant sealing materials, suitable for high temperature environments‌.
