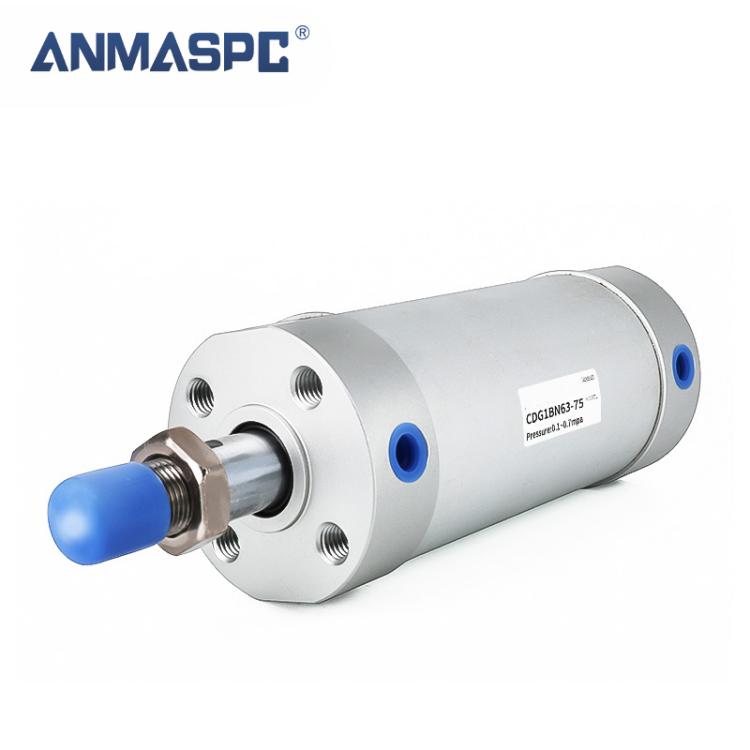

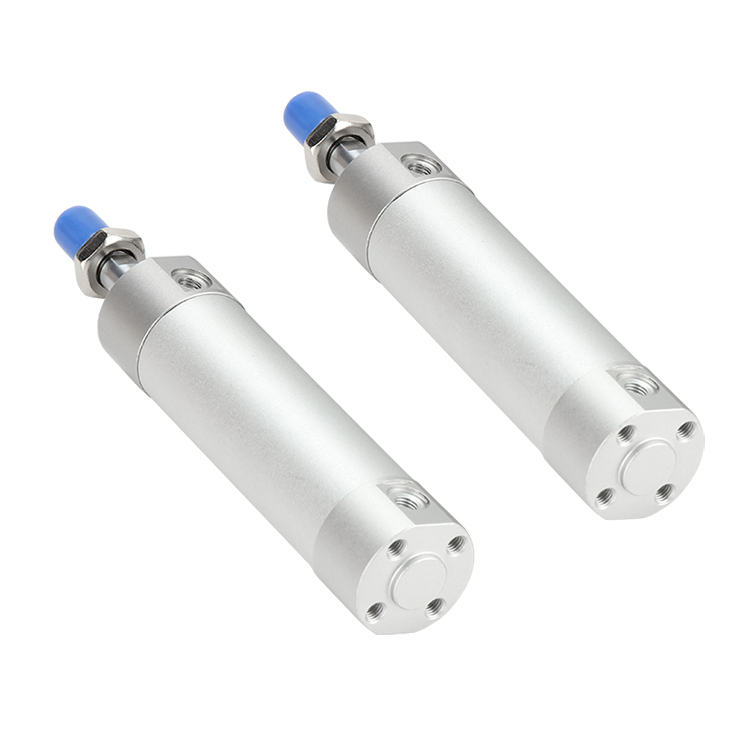

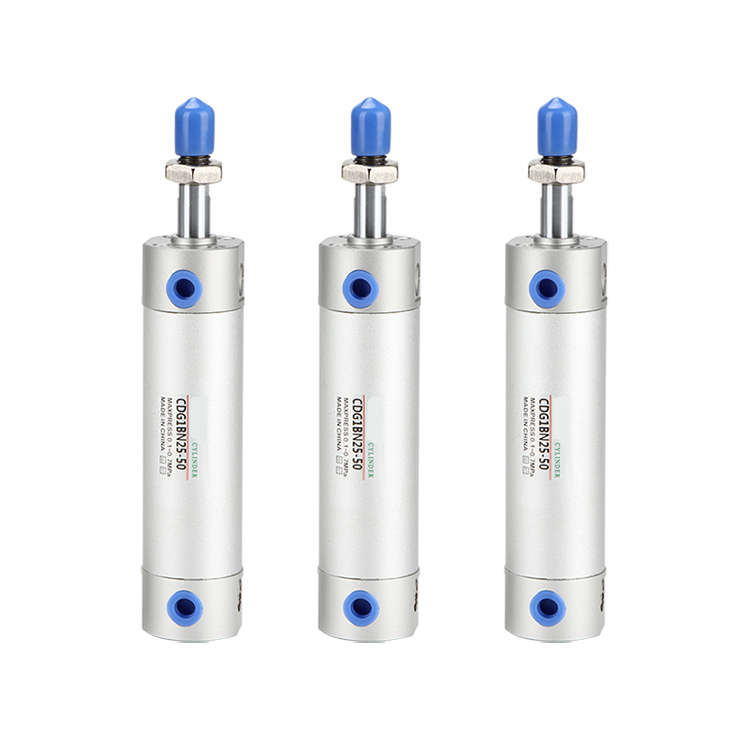

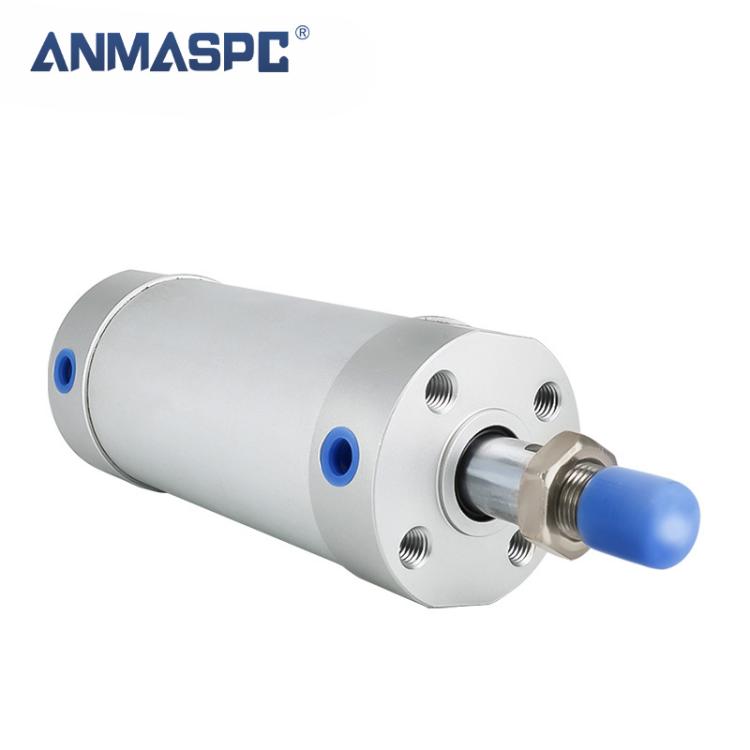

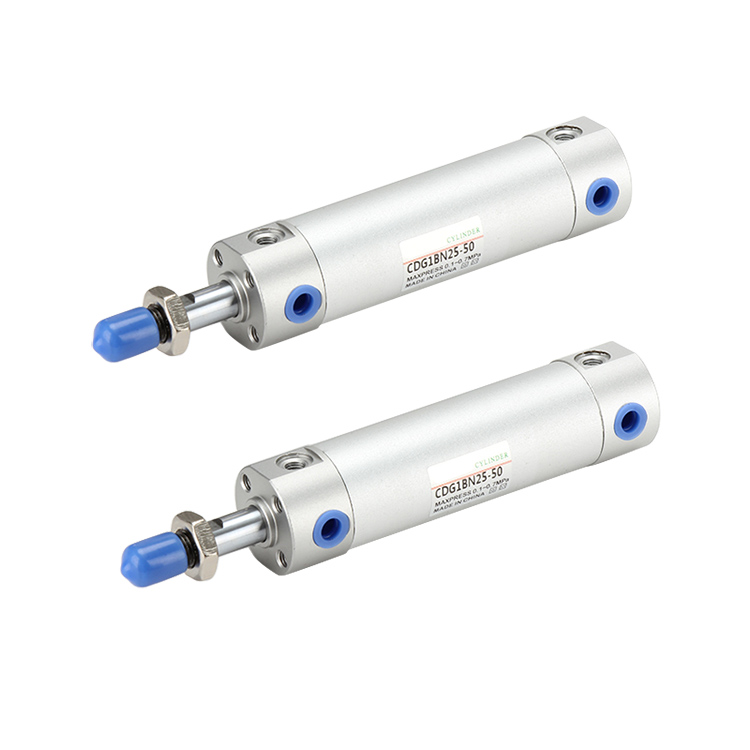

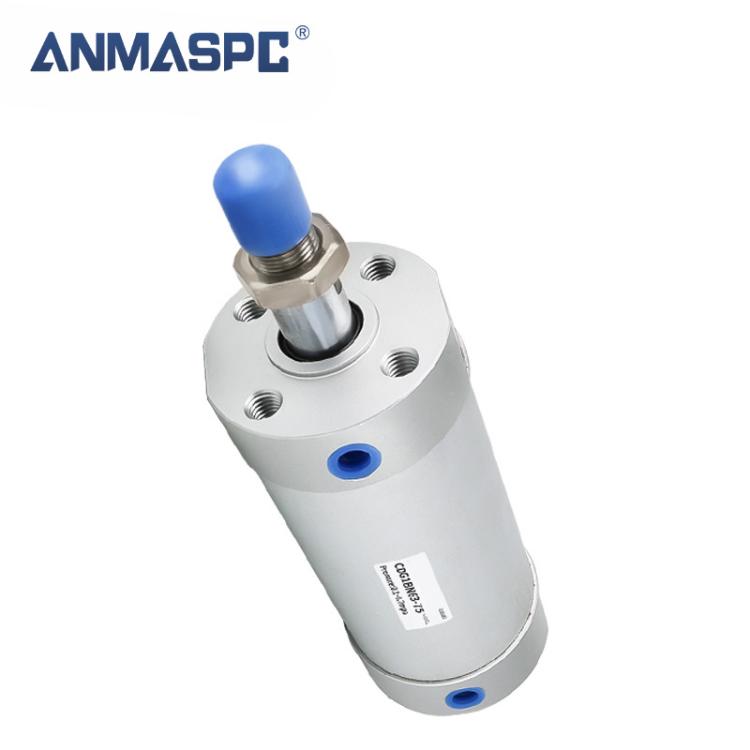

The pneumatic single-rod cylinder is a commonly used pneumatic actuator that uses compressed air to drive the piston to perform reciprocating linear motion to achieve the execution of robotic arms, manipulators, fixtures, etc.
Performance parameters
Cylinder diameter: 20, 25, 32, 40, 50, 63, 80 and 100mm
Maximum load: 10N3
Applicable pressure: 0.7MPa
Standard stroke: 10mm
Ambient temperature: 70℃
Features and uses
Features of the CG1 pneumatic single-rod cylinder include:
Increased piping freedom for various installation needs.
Standardized rod end internal threads for easy connection and installation.
Improved magnetic switch operability for easier fine-tuning of position.
Transparent magnetic switch bracket for easy viewing of indicator lights.
