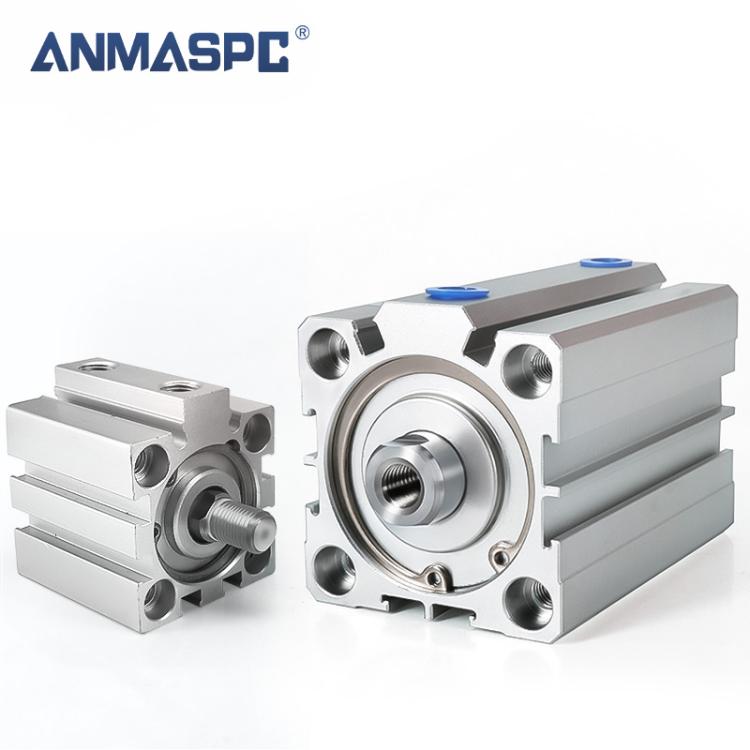

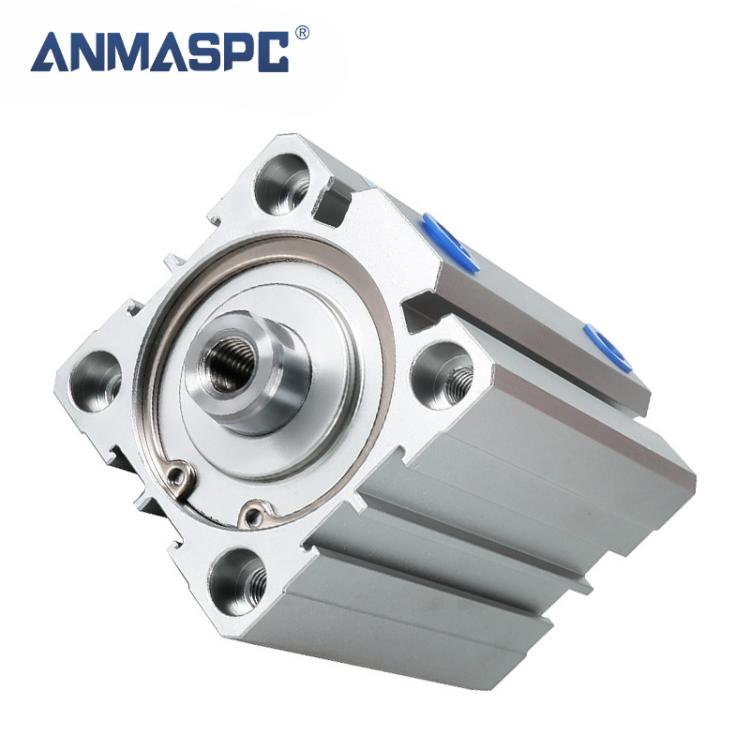

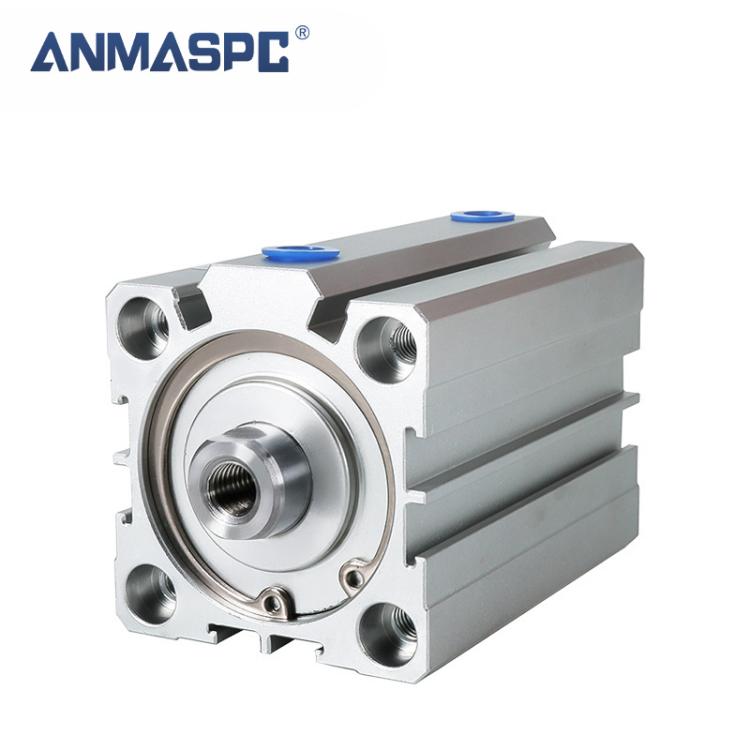

ACQ series Pneumatic cylinder Compact cylinder

Thin cylinder‌ is a cylinder with compact structure, light weight and small space occupation, which is mainly used to guide the piston to perform linear reciprocating motion in it. Thin cylinder is usually composed of cylinder barrel, end cover, piston, piston rod and seal, with the advantages of compact structure, light weight and small space occupation.

Model:ACQ20-30

Send Inquiry

Product Description

Product features‌:

‌JIS standard implementation‌: in line with Japanese industrial standards. ‌The cylinder body and the front and rear covers are fixed with C-shaped buckles‌: compact and reliable structure. ‌The inner diameter of the cylinder body is finely machined and then hard-oxidized: wear-resistant and durable. ‌The piston seal adopts a special-shaped two-way seal structure‌: compact size and oil storage function. ‌Compact structure‌: can effectively save installation space. ‌Magnetic induction switch slots are provided around the cylinder body‌: convenient for installing induction switches‌. ‌Specifications‌:

‌Cylinder diameter and stroke range‌: such as ACQ50X75, ACQ63X15, etc., specific models and specifications can be selected according to needs‌. ‌Action mode‌: single-acting and double-acting‌. ‌Using pressure range‌: for example, the operating pressure range of ACQ63X15 is 0.15~1.0MPa‌. ‌Application scenarios‌:

ACQ ultra-thin cylinders are suitable for occasions where installation space needs to be saved, especially widely used in automation equipment and mechanical systems‌.
