ACE series cylinder Pneumatic cylinder Compact cylinder

A compact cylinder is a small and light cylinder, which is particularly suitable for use in environments with limited space. Its compact design can effectively save installation space and is widely used in fields such as automation equipment and robots. Features ‌ Small size and light weight: The size of a compact cylinder is relatively small, usually with a diameter of less than 20mm and a length of less than 50mm, which is suitable for installation in environments with limited space. ‌ Fast response: Due to its small size and light weight, the compact cylinder can respond quickly to air control signals and improve work efficiency. ‌ High-precision positioning: It has good sealing performance and can operate stably under high pressure to ensure positioning accuracy. ‌ Various types: Including round compact cylinders, thin cylinders with guide rods, short-stroke cylinders, thin cylinders, ultra-thin cylinders, etc., suitable for different application scenarios.

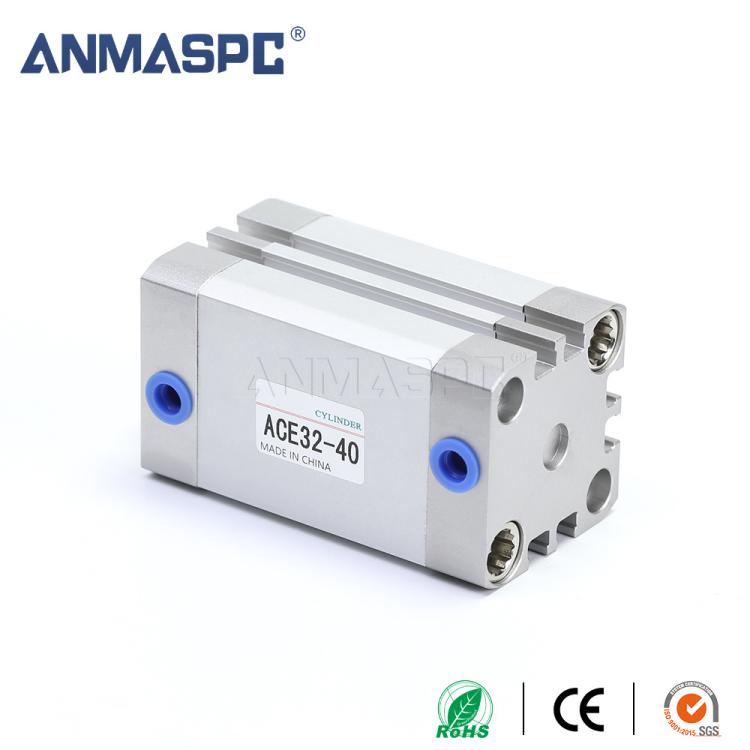

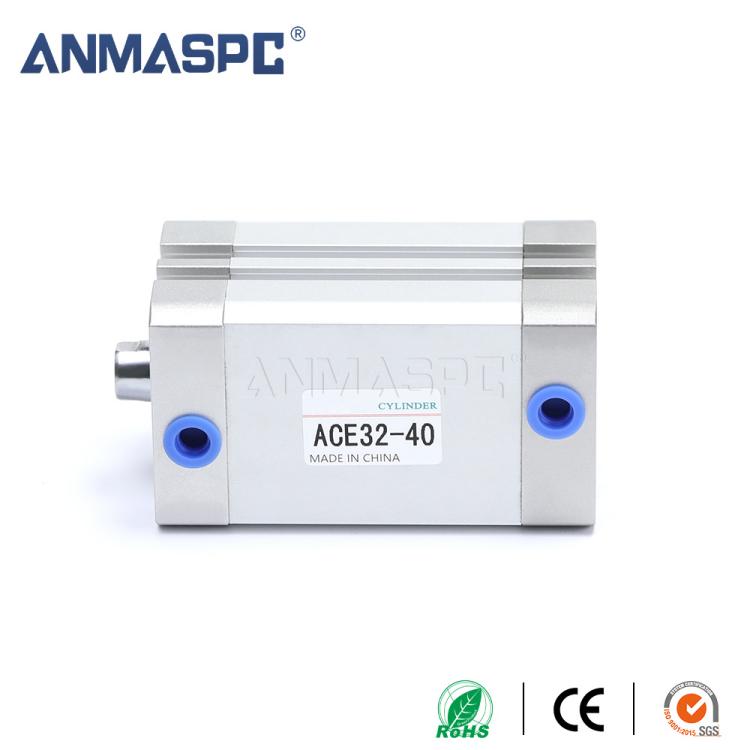

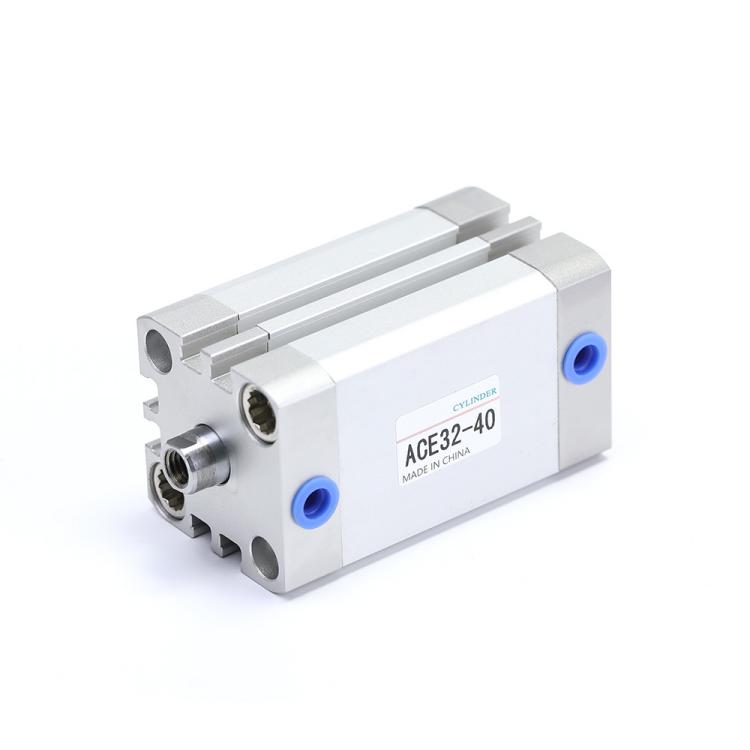

Model:ACE32-40

Send Inquiry

Product Description

ACE compact cylinders comply with ISO21287 standards and have universal installation dimensions. The cylinder body and the front and rear covers are threaded, which is high in strength and easy to maintain. The inner diameter of the cylinder body is finely machined and hard-oxidized, which is wear-resistant and durable. The piston seal adopts a special-shaped bidirectional seal structure, which is compact in size and has an oil storage function. Its compact structural design can effectively save installation space, saving up to 50% of space compared with ISO15552 standard cylinders of the same cylinder diameter.

In addition, ACE compact cylinders also have the following features:

Magnetic induction switch slot: The cylinder body has magnetic induction switch slots on three sides for easy installation of induction switches.

‌ Anti-collision pad: Built-in anti-collision pads effectively absorb residual energy generated by high-speed operation and mechanical rotation.

‌ Various specifications: Various specifications of installation accessories are provided to meet different needs.

These features make ACE compact cylinders perform well in the field of industrial automation and are suitable for various application scenarios that require compact design and high durability.
